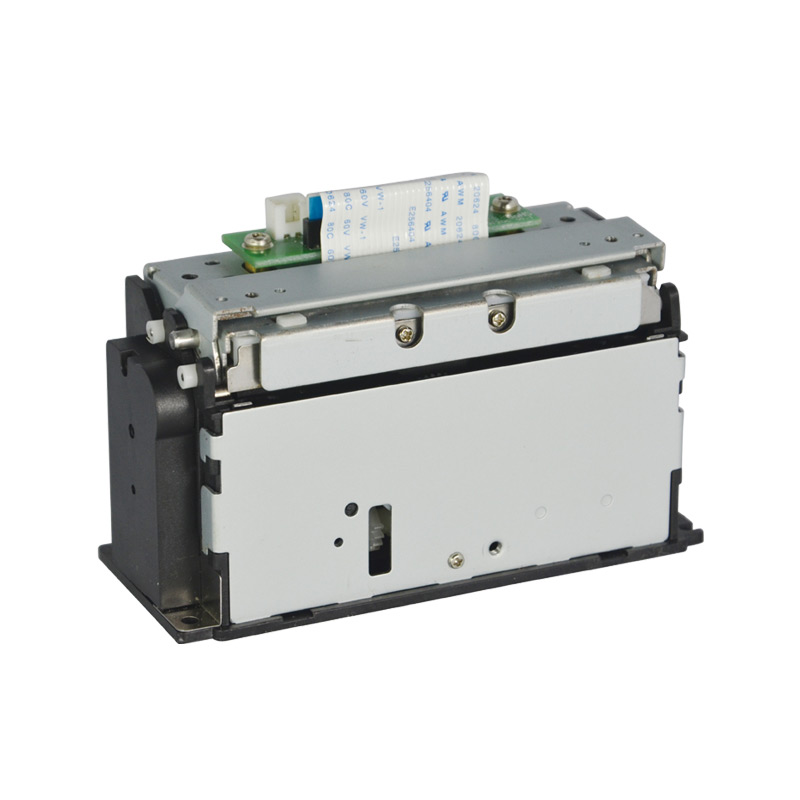

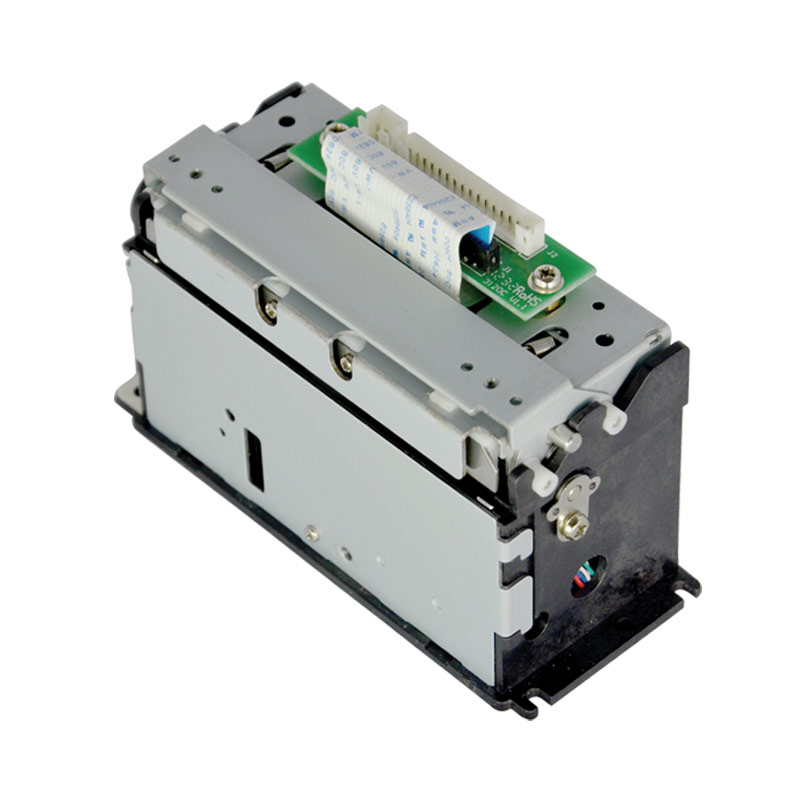

Model | SID3250HIII | |
Printing | Print method | Thermal dot line printing |
Dots per line | 640dots | |
Resolution | 8 dots/mm | |
Maximum print speed | 300 mm/sec (11.82 inch/sec) | |
Print width | 80 mm | |
Paper width | 82.5 mm max. | |
Paper feed pitch | 0.125 mm | |
Paper path | Straight | |
Detection | Head temperature detection | Via a thermistor |
Platen position detection | Via a mechanical switch | |
Out-of-paper detection | Via a photo interrupter | |
Cutter home position | Via a mechanical switch | |
Power supply(V) | Logic power supply(VDD) | 5V |
Heater print voltage(VH) | 24V | |
Peak current(A) | Head | 5.01A (26.4V / 128 dots) |
Motor | 0.40A/phase | |
Cutter | 1.20A | |
Auto Cutter | Method | Slide type |
Paper thickness(mm) | 0.054~0.120 | |
Cutting type | Partial cut(leave center point) or Full cut | |
Operating time(sec/cycle)max | 0.4 | |
Cutting pith(mm)min | 10 | |
Cut frequency(cut/min)max | 60 | |
Service life | Pulse activation | 100 million pulses or more |
Abrasion resistance(KM) | 150 km or more | |
Life(cutter) | 1,500,000 | |
Operating temperature range | 0°C to 50°C | |
Storage temperature range (No condensation) | -20°C to 60°C | |
Dimensions (excluding the lever and convex part)(width x depth x height) | 117(W)X48.2(D)X72.6(H)mm | |
Mass | Approx. 356g | |
