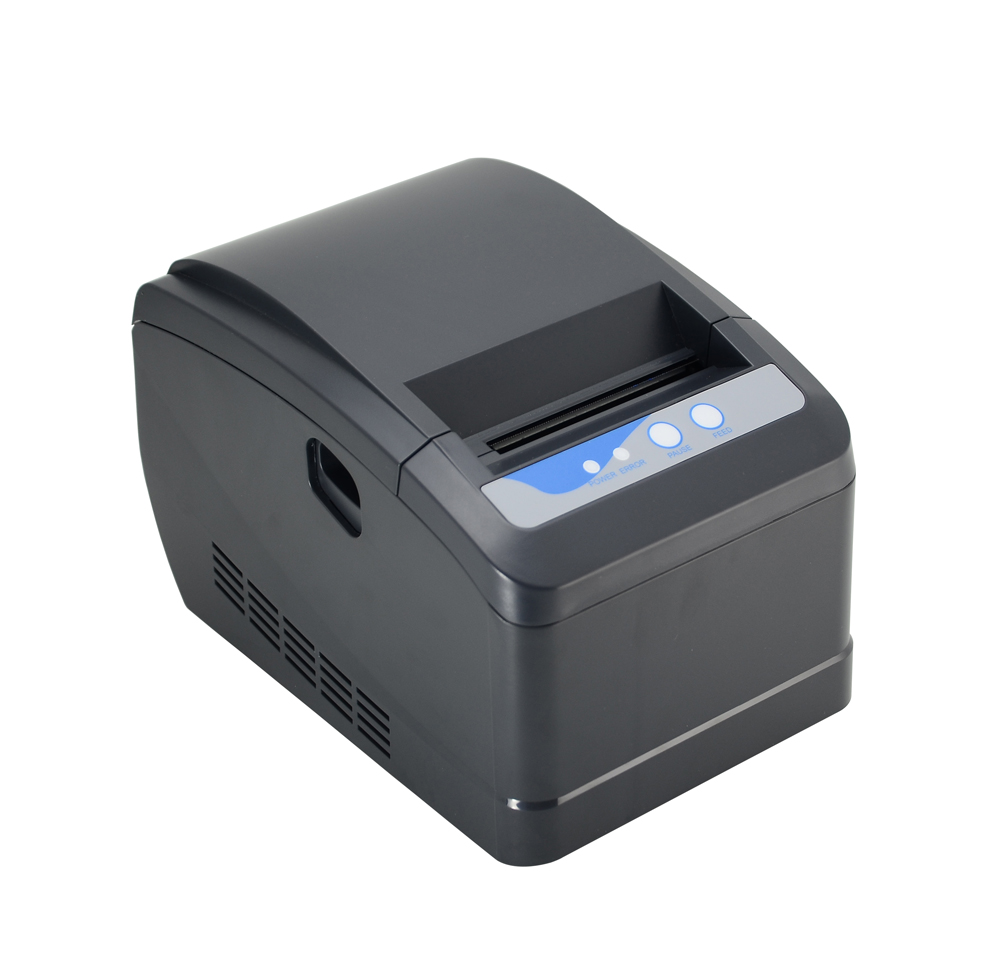

Printer
 Specifications

  Print Method

  Direct thermal line

  Resolution

  203 dpi

  Print Width

  Max 76mm

  Print Speed

  2 ~ 5inch/s

  Interface

  USB

  Print head            temperature detect

  Thermal sensitive ressistance

  Print Head Position     detect

  Mircoswitch

  Paper sensor

  Photoelectric sensor

  Memory

  DRAM: 2M FLASH: 2M

  Command set

  TSPL

 Media
 Characteristics

  Paper Type

  Thermal paper, Thermal label, Adhesive thermal  paper

  Media Width

  25-82mm

  Media Diameter

  25 ~ 100mm

  Paper Off Type

  Tear off

 BarCode/Fonts/
 Graphics  Symbologies

  Enlargement&Rotation

  1 ~10 times enlargement in both directions;          0°、90°、270°、360°rotation

  Character Size

  Font 0 ~ Font 8

  1D Barcode

  Code39, Code93, Code128 subsets A, B, C,    Codabar, Interleaved 2 of 5,  EAN-13, EAN-14,  EAN-128, UPC-A, UPC-  E, EAN and UPC 2(5)  digits    add-on, MSI,  PLESSEY, POSTNET, china  POS, ITF14

  Graphics Processing

  Support BMP/PCX/BAS files

  Editing Software

  Nicelabel  SE

 Operating  Characteristics

  Cashdrawer Out

  24VDC/2A

  Power Supply

  AC 110V/220V, 50 ~ 60Hz, DC 24V/2A

  Work Environment

  Temperature: 5 ~ 45℃, Humidity: 20 ~ 80%

  Storage Environment

  Temperature: -40 ~ 55℃, Humidity: 10 ~ 93%

 Physical Characteristics

  Weight

  1.5kg

  Dimension

  227×152×143mm
